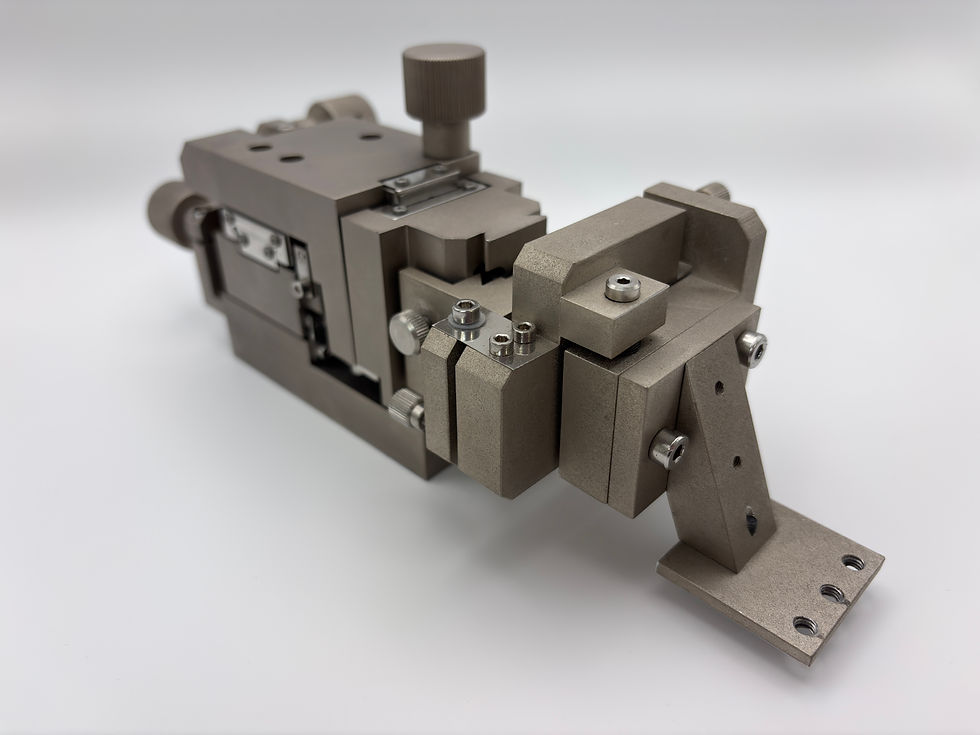

Designed and manufactured by Sandy Semiconductor Test Solutions in the UK, the SP1 and SP2 series manual linear motion micropositioners deliver high precision, rigid probing platforms for analytical probers.
Engineered with micrometer head drives and recirculating linear slides across all three axes (X, Y, Z), these manipulators provide smooth positioning for fine semiconductor geometries, submicron applications, and general electronic test environments.
-
Flexible Mounting Base: Choose between magnetic or vacuum hold down bases with quick release mechanisms for fast repositioning.
-
Modular Compatibility: Fully customisable with a choice of articulated front ends, microwave arms, high voltage/high current holders, and specialised probe arms.
-
Versatile Application Support:
-
Low Current / Femtoamp Testing: Low current probing capabilities to < 10 fA with coaxial, Kelvin dual SSMC, or series-resistor connections.
-
High Voltage & High Current (HV/HC): Specialist power device characterisation supporting up to 10 kV and pulsed currents up to 100 A.
-
RF & Microwave Probing: Configurable with dedicated microwave adjustable arms for RF applications.
-
Key Features & Benefits
SP1 Series Micro Positioner
-
Primary Focus: High precision, versatility, and advanced measurement capabilities.
-
Resolution: Down to 0.69 µm\° (100 TPI) or 0.28 µm\° (200 TPI).
-
Travel Range: 10 mm x 10 mm x 10 mm (X, Y, Z).
-
Footprint & Mass: 45 x 93.5 mm base, 1 kg mass.
-
Key Features: Available in standard and rear adjust options, ideal for maximising the number of positioners on a single platen.
SP2 Series Micro Positioner
-
Primary Focus: Ultra compact footprint for space restricted platens and high density probing configurations.
-
Resolution: 1.4 µm\° (50 TPI)
-
Travel Range: 10 mm x 10 mm x 10 mm (X, Y, Z).
-
Footprint & Mass: 38 x 79.5 mm base, 0.4 kg mass.
Compatible Accessories & Modular Options
-
Front Ends: Short/long noses, short/long articulated arms.
-
Probe Holders: Microwave adjustable arms, HV/HC probe holders, coax needle holders (Ø0.010''), and spring clamp needle holders (Ø0.020'').
-
Cables & Interconnects: SSMA-BNC cables, TRIAX-BNC cables, and DC wire form assemblies.
